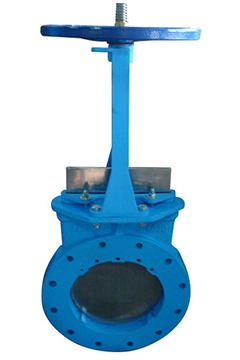

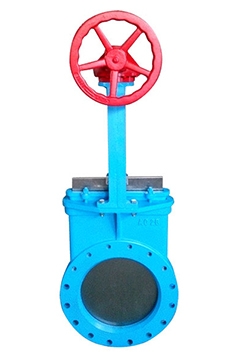

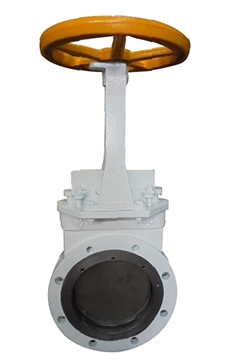

Manualknife gate valves
Product Introduction
DIMENSION TABLE:MM
| SIZE | L | φA | φB | W | H |
|---|---|---|---|---|---|
| 2” | 55 | 42 | 64 | 190 | 405 |
| 2-1/2” | 55 | 57 | 80 | 190 | 420 |
| 3” | 55 | 72 | 95 | 190 | 460 |
| 4” | 55 | 92 | 114 | 190 | 520 |
| 5” | 60 | 116 | 141 | 290 | 615 |
| 6” | 60 | 138 | 161 | 290 | 685 |
| 8” | 70 | 190 | 213 | 350 | 850 |
| 10” | 75 | 232 | 261 | 350 | 1000 |
| 12” | 80 | 280 | 315 | 400 | 1110 |
| 14” | 80 | 330 | 376 | 400 | 1200 |
| 16” | 90 | 375 | 420 | 400 | 1410 |
| 18” | 90 | 430 | 480 | 500 | 1570 |
| 20” | 120 | 475 | 520 | 500 | 1700 |
| 24” | 120 | 570 | 630 | 500 | 1970 |
| NO. | SUBJECT | MATERIAL | |||
|---|---|---|---|---|---|
| 1 | BODY | FC | FCD | ||
| 2 | PLATE | SUS304 | SUS3116 | ||
| 3 | STEM | SUS410 | SUS304 | SUS316 | |
| 4 | SEAT | PTFE | METAL | EPDM | |
| 5 | GLAND | WCB | |||
| 6 | GLAND PACKING | ASB NON-ASB / PTFE | |||
| 7 | YOKE | WCB | |||
| 8 | YOKE SLEEVE | CAST BRONZE | |||
| 9 | BOLT NUT | MILD STEEL | |||
| 10 | PAWLS | CAST IRON | |||
| 11 | HAND WHEEL | CAST IRON | |||
| 12 | NUT | SS41+Zn | |||
MATERIAL
| MATERIAL | BODY | PLATE | SEAT | GLAND PACKIBD |
|---|---|---|---|---|
| FCD FC WCB |
SUS304 SUS316 SUS304L SUS316L SUS420 |
METAL PTFE VITON EPDM |
NON+ASB+PTFE ASB ASB+PTFE PTFE NON ASBESTOS |
TEMPERATURE
| MATERIAL | TEM.RANGE |
|---|---|
| ASBESTOS+PTFE SILICON VITON TEFLON NON ASBESTOS |
-50˚ ~550℃ -20˚ ~150℃ -20˚ ~250℃ -30˚ ~150℃ -50˚ ~550℃ |
