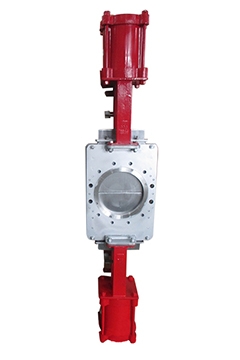

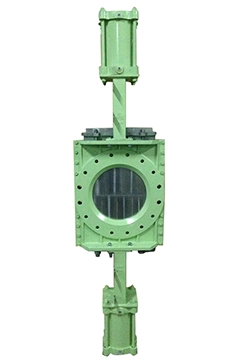

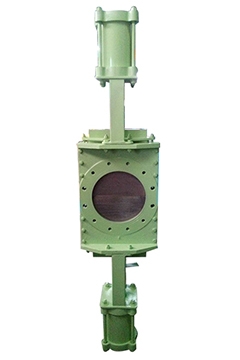

Pneumatic double gate knife gate valves
Product Introduction
DIMENSION TABLE:MM
| SIZE | 入口ψd | L | B | C | H | ψS |
|---|---|---|---|---|---|---|
| 4” |
75 |
60 |
300 |
590 |
960 |
125 |
| 5” |
100 |
70 |
325 |
640 |
1030 |
150 |
| 6” |
125 |
70 |
370 |
720 |
1130 |
180 |
| 8” |
170 |
70 |
450 |
870 |
1350 |
180 |
| 10” |
220 |
70 |
500 |
1130 |
1770 |
200 |
| 12” |
270 |
70 |
600 |
1270 |
1960 |
250 |
| 14” |
320 |
80 |
700 |
1400 |
2300 |
250 |
| 16” |
350 |
90 |
800 |
1700 |
2510 |
250 |
| 18” |
400 |
110 |
900 |
1730 |
2530 |
300 |
| 20” |
450 |
110 |
1000 |
2000 |
2890 |
350 |
|
|
|
|
|
|
|
| NO. | SUBJECT | MATERIAL | ||
|---|---|---|---|---|
| 1 | BODY | FCD | CF8 | CF8M |
| 2 | PLATE | SUS304 | SUS316 | |
| 3 | STEM | SUS410 | SUS304 | SUS316 |
| 4 | SEAT | METAL | ||
| 5 | GLAND | CF8 | ||
| 6 | GLAND PACKING | ASB NON-ASB、PTFE | ||
| 7 | YOKE | WCB | ||
| 8 | ACTUATOR | AL ALLOYS(8”以下)、FC(10”以上) | ||
| 9 | BOLT NUT | MILD STEEL、SUS304 | ||
| 10 | CONNECTOR | SUS304 | ||
| 11 | NUT | MILD STEEL、SUS304 | ||
MATERIAL
MATERIAL | BODY | PLATE | SEAT | GLAND PACKIBD |
|---|---|---|---|---|
| FC WCB SCS13 SCS14 SCS16 |
SUS304 SUS316 SUS304L SUS316L |
METAL | NON+ASB+PTFE ASB ASB+PTFE PTFE NON ASBESTOS |
TEMPERATURE
| MATERIAL | TEM.RANGE |
|---|---|
| ASBESTOS+PTFE SILICON VITON TEFLON NON ASBESTOS |
-50˚ ~550℃ -20˚ ~150℃ -20˚ ~250℃ -30˚ ~150℃ -50˚ ~550℃ |
